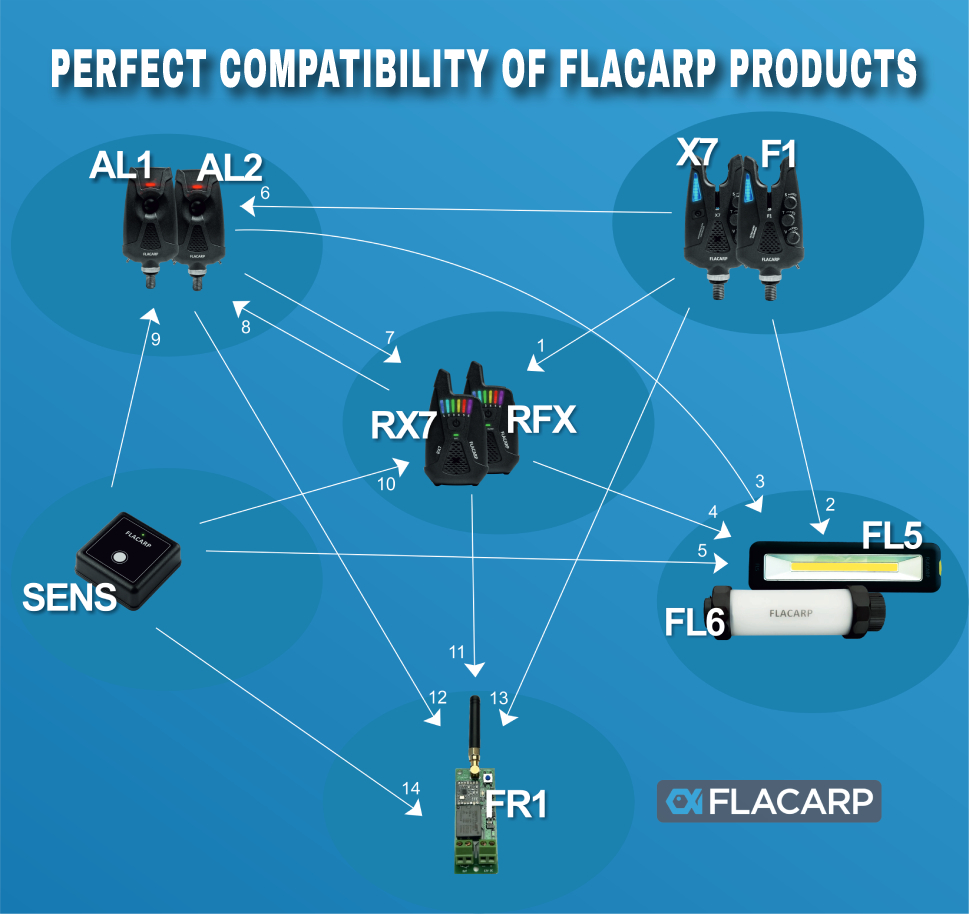

To help you use the full potential of our products, we have prepared this clear graphic on how our products can be connected.
Connection description:
1) signaling the bite on the receiver - sound, visually, vibrations
2) lights the lamp when the bite
3) lights the lamp on alarm from the motion sensor
4) lights the lamp with a button on the receiver
5) lights the lamp when the sensor alarms
6) lights the LED on the motion sensor on the bite
7) signals the alarm from the motion sensor on receiver - sound, visually, vibrations
8) lights up the LED on the motion sensor by the button on the receiver
9) lights up the LED on the motion sensor during an alarm on the sensor
10) Signals a sensor alarm on the receiver - sound, visually, vibrations
11) switches on the relay by the button on the receiver
12) switches the relay on alarm from the motion sensor
13) switches the relay when the bite
14) switches the relay on alarm from the sensor
