FLACARP FR1 wireless relay

Product detailed description

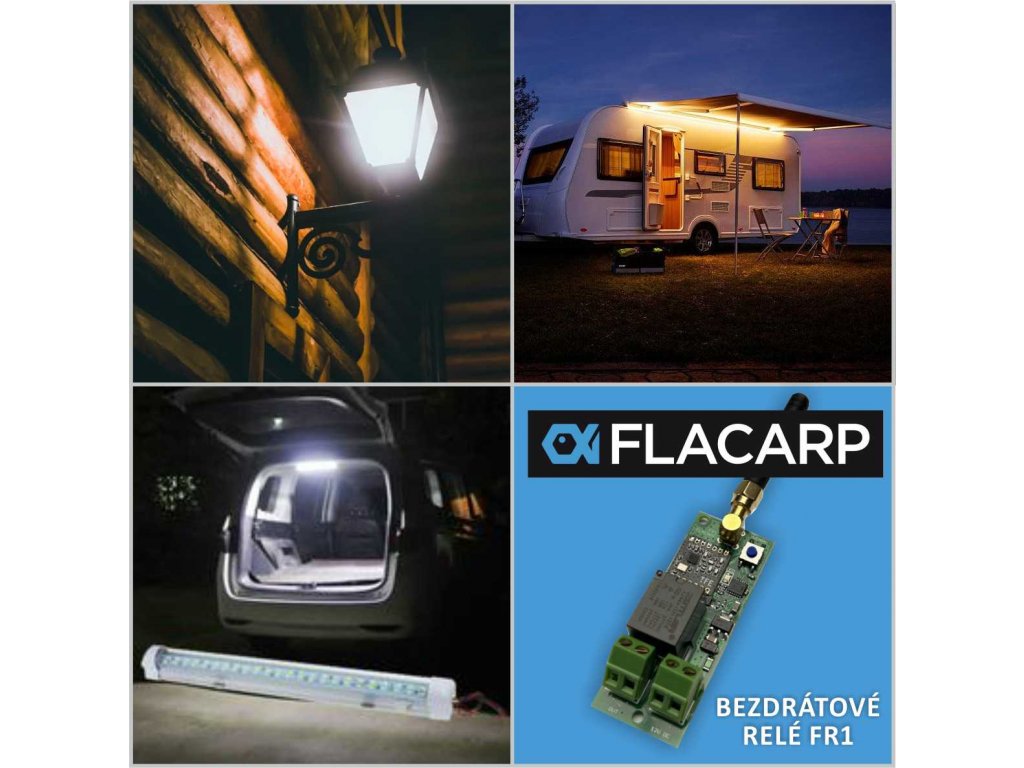

Small wireless relay module. It allows to control external appliances by FLACARP products, e.g. switch on the light in the caravan, cabin ... via FLACARP receiver, bite alarms, motion alarms...

So you can easily control the lights in the caravan, or you can pair the module with the bite alarms and the light in the caravan will be switched on after the bite. It can be paired with all FLACARP wireless products.

The module extends the possibilities of remote control of external appliances by FLACARP products up to a distance of several hundred meters.

All saving and deleting of devices (pairing) is done simply and intuitively via a button on the module (short press=save, long press=delete). Up to 10 different FLACARP devices can be saved in memory.
Thanks to the low current consumption, the module can also be connected to a battery (12V car battery).

Technical parameters:

Power supply voltage: 8 - 14V DC.
Output: relay switching contact, load up to 10A / 250VAC
Resting current (relay does not hold): up to 10 mA
Max. current (relay closed): up to 50mA
Module dimensions: 69 x 27mm, max. height 20mm
Antenna: connected via SMA connector
Frequency: 868 MHz
Range: hundreds of meters, max.1km (with short antenna), with external antenna even several kilometers
Memory size: up to 10 FLACARP devices can be saved (paired)
Mounting: via 2 x 3.2mm holes, via spacers (included)

Package: module, antenna, mounting spacers, instructions

The module is not a separate functional unit and requires professional assembly.
